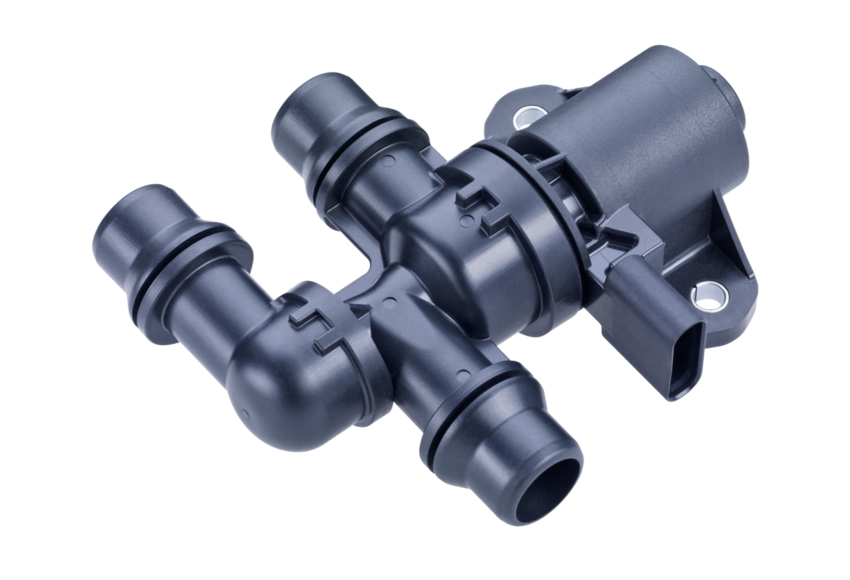

Coolant poppet valve
3-way switching valve with position feedback (high flow)
Highlights
- Integrated position feedback with SENT/ANALOG output
- Fail safe open or closed freely selectable thanks to modular principle for "high flow"
- Compact installation space and lowest weight
- Flow rate range freely selectable – precise selection according to application requirements
| Technical data | High Flow CSV |
|---|---|
| Operating voltage | 12/24 V |
| Ambient temperatures | -40 to +140 °C |
| Media temperatures | -40 to +140°C |
| Flow rate | up to 50 l/min |
| Pressure drop | < 200 mbar at 25 l/min |
| Max. differential pressure closed | up to 1.8 bar |
| Internal leakage | < 0.05 l/min at 1.8 bar rel. |
