Coolant poppet valve

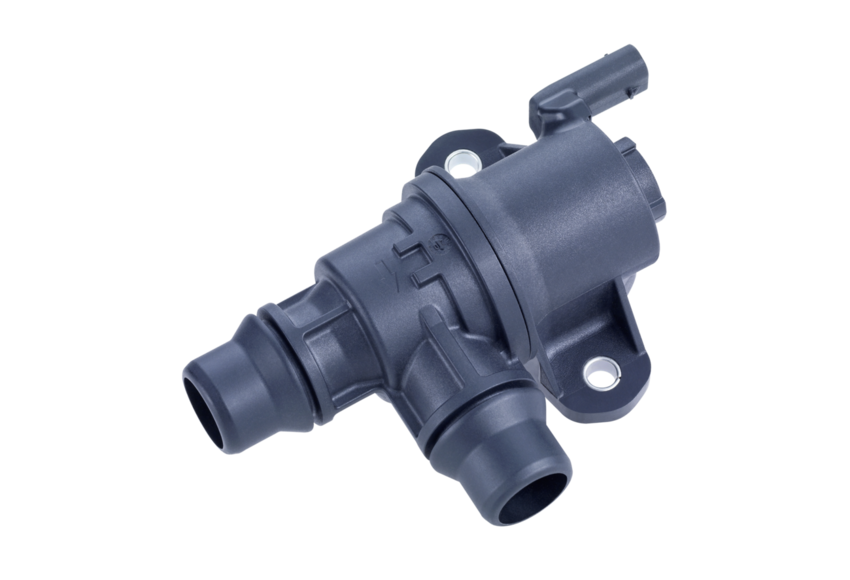

2-way coolant poppet valve (high flow)
Highlights
- As a poppet valve, best-in-class pressure drop with lowest leaks
- Fail safe open or closed freely selectable thanks to modular principle for "high flow"
- Compact installation space and lowest weight
- Vibration-resistant and can be mounted directly without additional bracket
- Flow rate range freely selectable – precise selection according to application requirements
| Technical data | High Flow CSV |
|---|---|
| Operating voltage | 12/24 V |
| Ambient temperatures | -40 to +140°C |
| Media temperatures | -40 to +140°C |
| Flow rate | up to 50 l/min |
| Pressure drop | up to < 75 mbar at 25 l/min |
| Max. differential pressure closed | up to 2.0 bar |
| Internal leakage | < 0.05 l/min bei 1.8 bar rel. |
