ILEE® Adjustable diode laser modules
The adjustable ILEE® industrial laser modules are the perfect solution when the laser is mechanically fixed, and the laser spot needs to be precisely aligned in the X/Y direction.

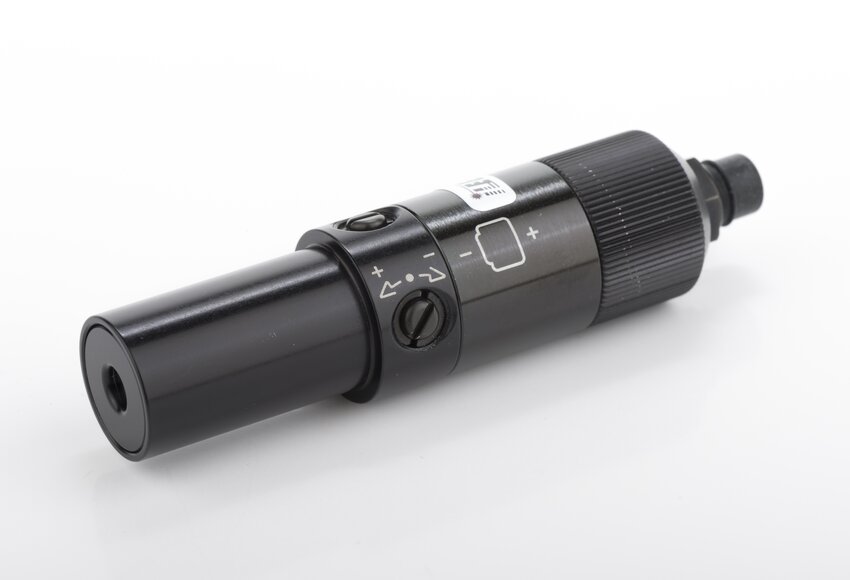

ILEE® JULA MINI alignment laser
The laser, which is mechanically adjustable to the axis of rotation, projects a clearly visible point. Thanks to the fine adjustment, the laser can be adjusted to an accuracy of 0.24 mrad. The laser can be attached to a holder by means of a ∅ 18 g6 or ∅ 16.4 mm +0/–0.1 fitting.
Characteristics
- ± 20 mrad angle of adjustment travel
- 0.24 mrad adjustment per click
- Colimated dot laser
- Laser in X-Y axis adjustable
- Two mounting options:
- diameter Ø 18 g6 or
- diameter Ø 16.4 mm +0/–0.1 tolerance fit
- AR coated glass lens
Applications
- Pointing
- Alignment
- Positioning
- Illumination
Download datasheets

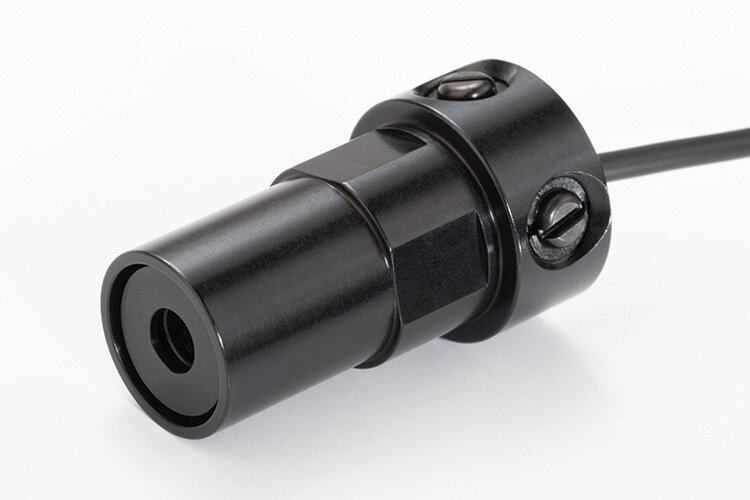

Battery-powered ILEE® JULA+ alignment laser
The alignment laser has an integrated X/Y axis adjustment, with which the beam can be adjusted to an accuracy of 0.24 mrad. The power is supplied by a battery. The laser is activated by a push button or an optional remote control. The outer diameters of 18 mm and 22 mm are available for mounting the laser.
Characteristics
- Colimated dot laser
- Laser in X-Y axis adjustable
- ± 20 mrad angle of adjustment travel
- 0.12 mrad adjustment per click
- Two mounting options:
- diameter Ø 22 mm or
- diameter Ø 18 mm +0/–0.1 tolerance fit
- Switching on and off via pushbutton or optional remote control
- AR coated glass lens
- Battery powered (DL1/3N)
Applications
- Pointing
- Alignment
- Positioning
Download datasheets
Accessories

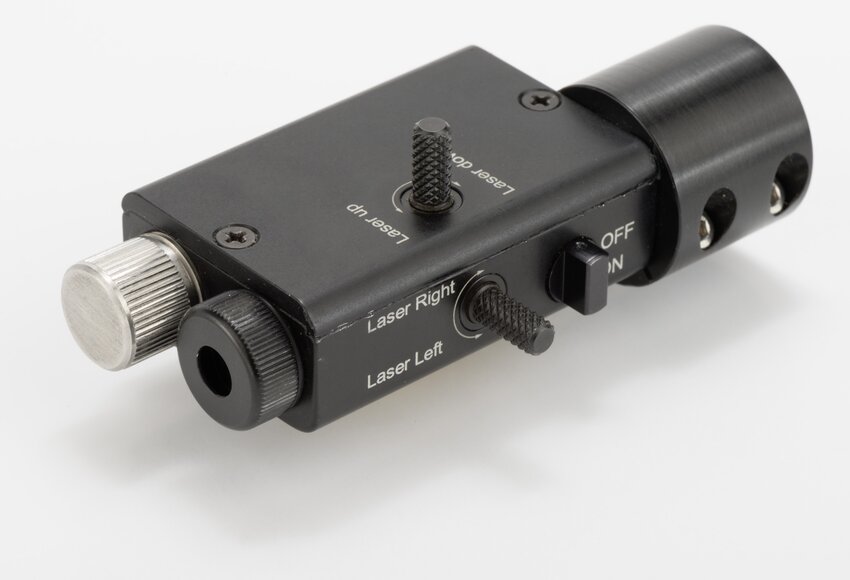

Battery-powered ILEE® BARRELBEAM alignment laser
The alignment laser can easily be mounted on a mandrel or shaft extension. By adjusting the integrated X/Y axis, the laser beam can be continuously adjusted. This allows a quick check of the correct alignment of components to be centred on the shaft. Power is supplied by a standard battery, which is accessible even when the alignment laser is mounted on a shaft.
Characteristics
- Colimated dot laser
- Laser in X-Y axis adjustable
- ± 20 mrad angle of adjustment travel
- Stepless adjustment (no click)
- Mounting via Ø 12 H7 x 20 bore
- On/off switch
- AR coated glass lens
- Battery powered (AAA/LR03)
Applications
- Pointing
- Alignment
- Positioning
Download datasheet
