The Vingmate family
Advanced sight and fire control systems (FCSs)
The Vingmate family consists of four fire control solutions, providing increased accuracy and performance for heavy machine guns, automatic grenade launchers (AGLs), for high velocity, stand-alone or underslug grenade launchers for low and medium velocity and shoulder-fired weapon systems.

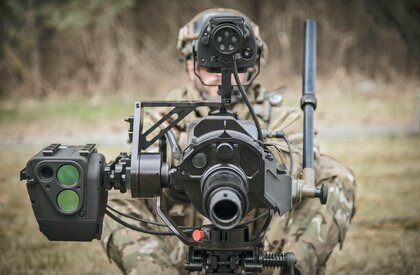

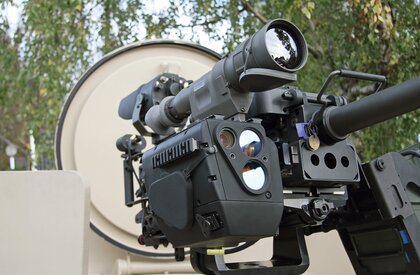

Vingmate FCS4500
Der Industriestandard für Hochgeschwindigkeits-AGLs und schwere Maschinengewehre.
Vingmate SL1000
Das Feuerleitsystem der nächsten Generation für schultergestützte Waffen.
MR800
Das fortschrittlichste Feuerleitsystem für 40mm Granatwerfer mit niedriger und mittlerer Geschwindigkeit und schultergestützte Waffen.
MR500
Das leichte Feuerleitsystem für 40mm Granatwerfer mit niedriger und mittlerer Geschwindigkeit und leichte Schulterwaffen.
The Vingmate FCS should be mounted on soft mount cradles for best performance. The weapon system can be ground mounted using a tripod, or be vehicle mounted. The complete system can be used in a wide range of climatic environments such as snow, dessert, mountain, jungle and urban warfare areas.
Benefits
- The element of surprise:
– Very high first hit probability out to 1,500m
– Accurate out to 2,000 meters
– Fast target identification and engagement
– Facilitates rapid multiple target engagements
– Indirect fire
– Increased tactical flexibility - More effective use of the weapon:
– Less ammo consumption per target
– Increased mission endurance
– Less crew exposure and increased safety - Reduces the risk of collateral damage:
– Turns the AGL from an area suppressive weapon to a accurate force multiplier
- LRF covering twice the distance of the ammo
- 3 FOV CMOS day camera
- Highly flexible
– Supports multiple weapons
– Supports multiple ammunitions including air burst - Build in GPS
- Azimuth sensor
- Battle Management System compatible
- Indirect fire (high and low quadrant)
- Controlling and programming Air Burst Munition
- Fitted for use of laser pointers
- Can be used with I² light intensifier
- Vehicle mounted or ground mounted
The preferred sight for shoulder-launched weapons

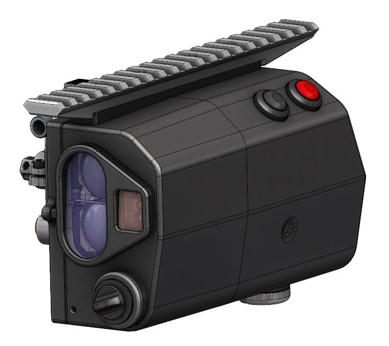

The Vingmate Shoulder-Launched 1000 is a fire control system specially designed for shoulder-launched rockets (e.g AT4/CG 84mm/Panzerfaust/RPG), but can easily adapt to 40mm high velocity grenade launchers (e.g Mk19/GMG/Mk47). Its unique construction and build-in laser range finder supports up to 1,300 grams of GFE sights and the FCS itself just adds 1,300 grams to the host weapon. The SL1000 supports multiple weapons and ballistics, it increases the precision of the weapon system and the effectiveness of the user, while simplifying training and reducing cost.
- Significantly improved first hit probability
- Reduced ammunition consumption per target
- Reduced engagement time
- Increased mission endurance
- Operational in less than 3 seconds
- Easy to handle/employ
- Cost effectiveness
- Lase range finder 1,550nm
Features
- Payload – 1,600 grams or less
- Highly accurate (1 meter accuracy)
- Highly flexible – supports multiple rocket launchers – supports
- multiple top sights – supports multiple ammunitions
- including air burst(40mm and rockets)
- Designed for left or top mounting
- Day and night capable (IR Illuminator, IR Target Marker and
- Visible Target Marker)
- Quick selector for two predefined ballistic tables and distances.
- Storage for up to 1,000 ballistic tables
- Air Burst programmable

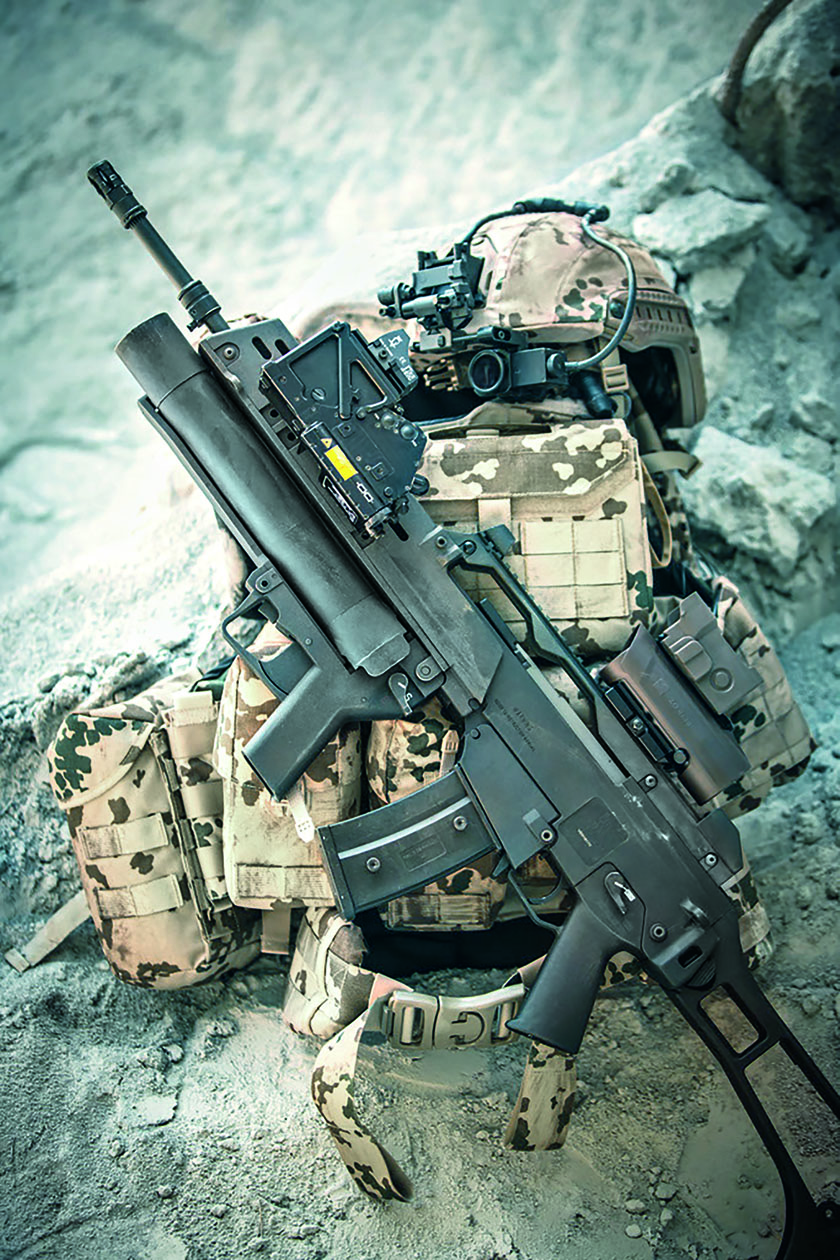

Das Multi-Ray 800 ist ein schienenmontiertes Feuerleitgerät, das speziell für 40-mm-Niedrig- und Mittelgeschwindigkeits-Granatwerfer und schultergestützte Raketen (z.B. M72/AT4) entwickelt wurde. Mit eingebautem Laserentfernungsmesser wiegt es nur 700 Gramm mehr als die Hauptwaffe.
Das Multi-Ray 500 ist ein schienenmontiertes Feuerleitgerät, das ebenso speziell für 40-mm-Nieder- und Mittelgeschwindigkeitsgranatwerfer und schultergestützte Raketen (z.B. M72/AT4) entwickelt wurde. Seine einzigartige Leichtbauweise erhöht das Gewicht der Waffe um nur 300 Gramm .
Beide sind für den Einsatz an unterschiedlichen Waffen und Ballistiken geeignet.

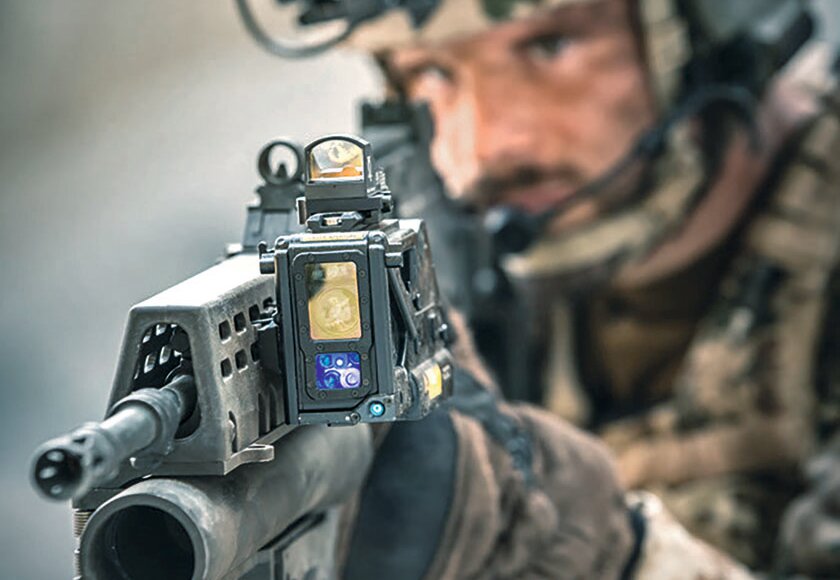

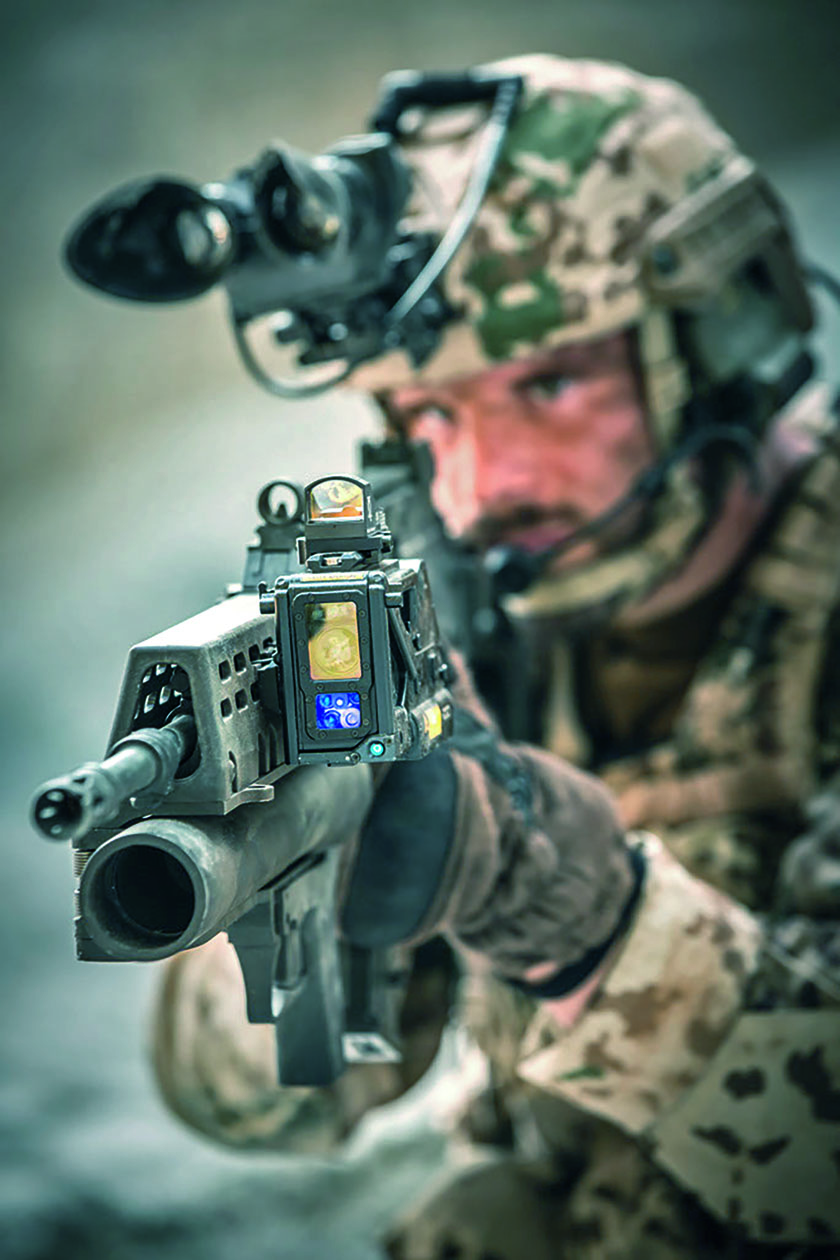

MR 800
The expert in the middleThe Multi-Ray 800 is a rail mounted fire control unit specially designed for 40mm low and medium velocity grenade launchers and shoulder-launched rockets (e.g. M72/AT4). With its unique light weight construction and build-in laser range finder it adds just 700 grams to the host weapon.
The Multi-Ray 800 supports multiple weapons and ballistics, it increases the precision of the weapon system and the effectiveness of the user, while simplifying training and reducing cost.

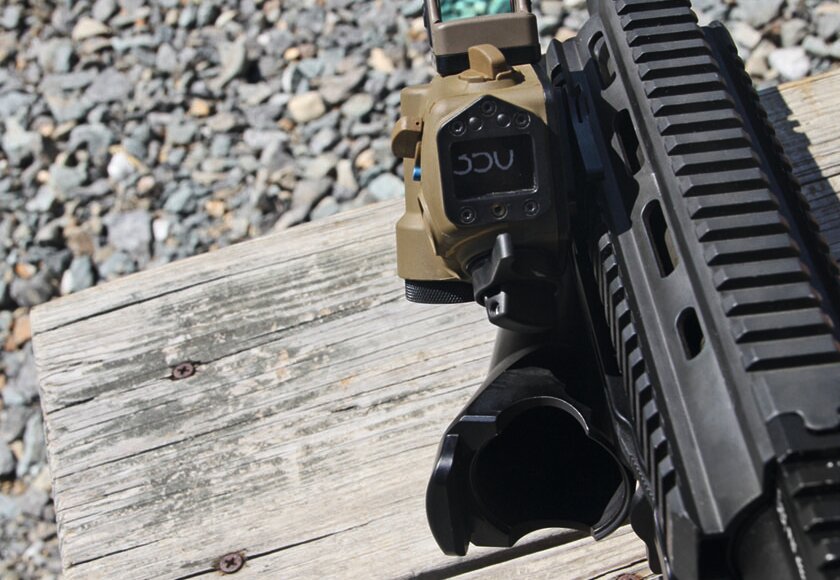

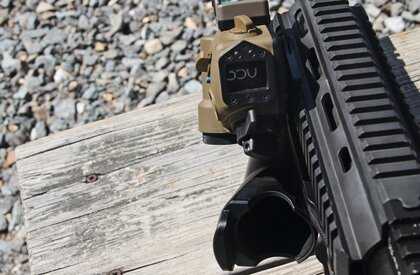

MR 500
The smart compromiseThe Multi-Ray 500 is a rail mounted fire control unit specially designed for 40mm low and medium velocity grenade launchers and shoulder-launched rockets (e.g. M72/AT4). Its unique light weight construction adds just 300 grams to the host weapon.
The Multi-Ray 500 supports multiple weapons and ballistics, it increases the effectiveness of the user, while simplifying training and reducing cost.
- Significantly improved first hit probability
- Reduced ammunition consumption per target
- Reduced engagement time
- Increased mission endurance
- Operational in less than 3 seconds
- Easy to handle/employ
- Supports all users (left and right handed)
- Cost effectiveness
- Lase range finder 1,550nm
Features
- Light weight – 700 grams or less
- Highly accurate (1 meter accuracy)
- Highly flexible
– Supports multiple weapons
– Supports multiple top sights
– Supports multiple ammunitions including air burst - (40mm and rockets)
- Designed for left, right or top mounting
- Day and night capable (IR Illuminator, IR Target Marker and
- Visible Target Marker included)
- Quick selector for two predefined ammunitions and
- distances
- Storage for up to 32 ammunitions to select from
- Air Burst Programmer included
- Reduced ammunition consumption per target
- Reduced engagement time
- Increased mission endurance
- Operational in less than 2 seconds
- Easy to handle/employ
- Supports all users (left and right handed)
- Cost effectiveness
Features
- Light weight – 300 grams or less
- Follows accurately the pre-programmed ballistic table
- Highly flexible
– Supports multiple weapons
– Supports multiple top sights
– Supports multiple ammunitions including air burst - (40mm and rockets)
- Ambidextrous – Designed for both right and left handed
- shooters
- Day and night capable (IR Illuminator & IR Target Marker incl.)
- Quick selector for two predefined ballistic tables
- Storage for up to 32 ballistic tables
- Fixed graduated scale
- Customized distance resolution 1, 5 or 10 meters
Precision
Our sights dramatically increase the accuracy of the host weapon, resulting in improved first-round hit probability and reducing the risk of collateral damage.
Airburst capable
Technology enables use of 40mm- and 84mm airburst ammunitions.
Lase, aim and fire
Day/night capable, these products provide gunners with easy to use interfaces, as well as point and shoot functionality.
Mission endurance
Reduced ammunition consumption per target resulting in increased mission endurance.
Cost savings
Modular solutions to meet specific requirements andenhanced training opportunities
